Locks, Actors, And STM In Pictures

All programs with concurrency have the same problem.

Your program uses some memory:

When your code is single-threaded, there’s just one thread writing to memory. You are A-OK:

But if you have more than one thread, they could overwrite each others changes!

You have three ways of dealing with this problem:

  1. Locks
  2. Actors
  3. Software Transactional Memory

I’ll solve a classic concurrency problem all three ways and we can see which way is best. I’m solving the Dining Philosophers problem. If you don’t know it, check out part 1 of this post!

Locks

When your code accesses some memory, you lock it up:

mutex == the lock.

critical section == the code locked with a mutex.

Now if a thread wants to run this code, he (or she) needs the key. So only one thread can run the code at a time:

Sweet! Only one thread can write to that memory at a time now. Problem solved! Right?

A thread in a critical section

A thread in a critical section

Here’s a Ruby implementation of the resource hierarchy solution.

Each Philosopher gets a left and a right fork (both forks are mutexes):

  class Philosopher
  def initialize(name, left_fork, right_fork)
    @name = name
    @left_fork = left_fork
    @right_fork = right_fork
  end

Now we try to get the forks:

  while true
  @left_fork.lock
  puts "Philosopher #@name has one fork..."
  if @right_fork.try_lock
    break
  else
    puts "Philosopher #@name cannot pickup second fork"
    @left_fork.unlock
  end
end
  1. A philosopher picks up fork 1. He waits till he has it (lock waits).
  2. He tries to pick up fork 2, but doesn’t wait (try_lock doesn’t wait).
  3. If he didn’t get fork 2, he puts back fork 1 and tries again.

Full code here. Here’s an implementation using a waiter instead.

Locks are super tricky to use. If you use locks, get ready for all sorts of subtle bugs that will make your threads deadlock or starve. This post talks about all the problems you could run into.

Michael Scott finds a bug in his lock-based solution

Michael Scott finds a bug in his lock-based solution

Actors

I love actors! You love actors! Actors are solitary and brooding. Every actor manages its own state:

Actors ask each other to do things by passing messages:

Actors never share state so they never need to compete for locks for access to shared data. If actors never block, you will never have deadlock! Actors are never shared between threads, so only one thread ever accesses the actor’s state.

When you pass a message to an actor, it goes in his mailbox. The actor reads messages from his mailbox and does those tasks one at a time:

My favorite actor library for Ruby is Celluloid. Here’s a simple actor in Celluloid:

  class Dog
  include Celluloid
  def set_name name
    @name = name
  end

  def get_name
    @name
  end
end

See that include Celluloid? That’s all it takes, and now every Dog is an actor!

  > d = Dog.new
 => #<Celluloid::ActorProxy(Dog:0x3fe988c0d60c)>
> d.set_name "snowy"
 => "snowy"

Here we are telling the actor, d, to set its name to “snowy” synchronously. Here we instead pass it a message to set the name asynchronously:

  d.async.set_name "snoopy"
 => nil
d.get_name
 => "snoopy"

Pretty cool. To solve the dining philosophers problem, we need to model the shared state using an actor. So we introduce a Waiter:

  class Waiter
  include Celluloid
  FORK_FREE = 0
  FORK_USED = 1

  def initialize(forks)
    @philosophers = []
    @eating = []
    @forks = [FORK_FREE, FORK_FREE, FORK_FREE, FORK_FREE, FORK_FREE]
  end
end

The waiter is in charge of forks:

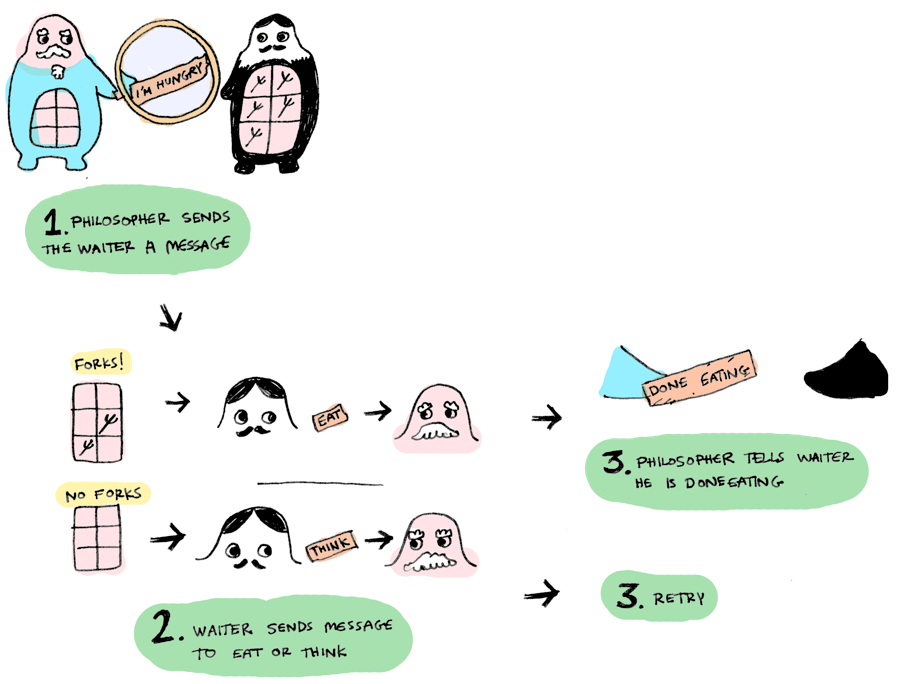

When a Philosopher gets hungry, he lets the waiter know by passing a message:

  def think
  puts "#{name} is thinking"
  sleep(rand)
  puts "#{name} gets hungry"
  waiter.async.hungry(Actor.current)
end

When the waiter gets the message, he sees if the forks are available.

  • If they are available, he will mark them as ‘in use’ and send the philosopher a message to eat.
  • If they are in use, he tells the philosopher to keep thinking.
  def hungry(philosopher)
  pos = @philosophers.index(philosopher)

  left_pos = pos
  right_pos = (pos + 1) % @forks.size

  if @forks[left_pos] == FORK_FREE && @forks[right_pos] == FORK_FREE
    @forks[left_pos] = FORK_USED
    @forks[right_pos] = FORK_USED
    @eating << philosopher
    philosopher.async.eat
  else
    philosopher.async.think
  end
end

Full code here. If you want to see what this looks like using locks instead, look here.

The shared state is the forks, and only one thread (the waiter) is managing the shared state. Problem solved! Thanks Actors!

Software Transactional Memory

I’m going to use Haskell for this section, because it has a very good implementation of STM.

STM is very easy to use. It’s just like transactions in databases! For example, here’s how you pick up two forks atomically:

  atomically $ do
  leftFork <- takeFork left
  rightFork <- takeFork right

That’s it! No need to mess around with locks or message passing. Here’s how STM works:

  1. You make a variable that will contain the shared state. In Haskell this variable is called a TVar:

You can write to a TVar using writeTVar or read using readTVar. A transaction deals with reading and writing TVars.

  1. When a transaction is run in a thread, Haskell creates a transaction log that is for that thread only.

  1. Whenever one a block of shared memory is written to (with writeTVar), the address of the TVar and its new value is written into the log instead of to the TVar:

  1. Whenever a block is read (using readTVar):
  • first the thread will search the log for the value(in case the TVar was written by an earlier call to writeTVar).
  • if nothing is found, then value is read from the TVar itself, and the TVar and value read are recorded in the log.

In the meantime, other threads could be running their own atomic blocks, and modifying the same TVar.

When the atomically block finishes running, the log gets validated. Here’s how validation works: we check each readTVar recorded in the log and make sure it matches the value in the real TVar. If they match, the validation succeeds! And we write the new value from the transaction log into the TVar.

If validation fails, we delete the transaction log and run the block all over again:

Since we’re using Haskell, we can guarantee that the block had no side-effects…i.e. we can run it over and over and it will always return the same result!

Haskell also has TMVars, which are similar. A TMVar either holds a value or is empty:

An empty TMVar

An empty TMVar

You can put a value in a TMVar using putTMVar or take the value in the TMVar using takeTMVar.

  1. If there you try to put a value in a TMVar and there’s something there already, putTMVar will block until it is empty.
  2. If there you try to take a value from a TMVar and it is empty, takeTMVar will block until there’s something in there.

Our forks are TMVars. Here are all the fork-related functions:

  newFork :: Int -> IO Fork
newFork i = newTMVarIO i

takeFork :: Fork -> STM Int
takeFork fork = takeTMVar fork

releaseFork :: Int -> Fork -> STM ()
releaseFork i fork = putTMVar fork i

A philosopher picks up the two forks:

  (leftNum, rightNum) <- atomically $ do
  leftNum <- takeFork left
  rightNum <- takeFork right
  return (leftNum, rightNum)

He eats for a bit:

  putStrLn $ printf "%s got forks %d and %d, now eating" name leftNum rightNum
delay <- randomRIO (1,3)
threadDelay (delay * 1000000)
putStrLn (name ++ " is done eating. Going back to thinking.")

And puts the forks back.

  atomically $ do
  releaseFork leftNum left
  releaseFork rightNum right

Full code here.

Actors require you to restructure your whole program. STM is easier to use – you just specify what parts should run atomically. Clojure and Haskell both have core support for STM. It’s also available as modules for a lot of other languages: C, Python, Scala, JavaScript etc etc.

I’m pretty excited to see STM used more!

Conclusion

Locks

  • available in most languages
  • give you fine-grained control over your code
  • Complicated to use. Your code will have subtle deadlock / starvation issues. You probably shouldn’t use locks.

Actors

  • No shared state, so writing thread-safe is a breeze
  • No locks, so no deadlock unless your actors block
  • All your code needs to use actors and message passing, so you may need to restructure your code

STM

  • Very easy to use, don’t need to restructure code
  • No locks, so no deadlock
  • Good performance (threads spend less time idling)

References

For more drawings, check out Functors, Applicatives, and Monads in pictures.
